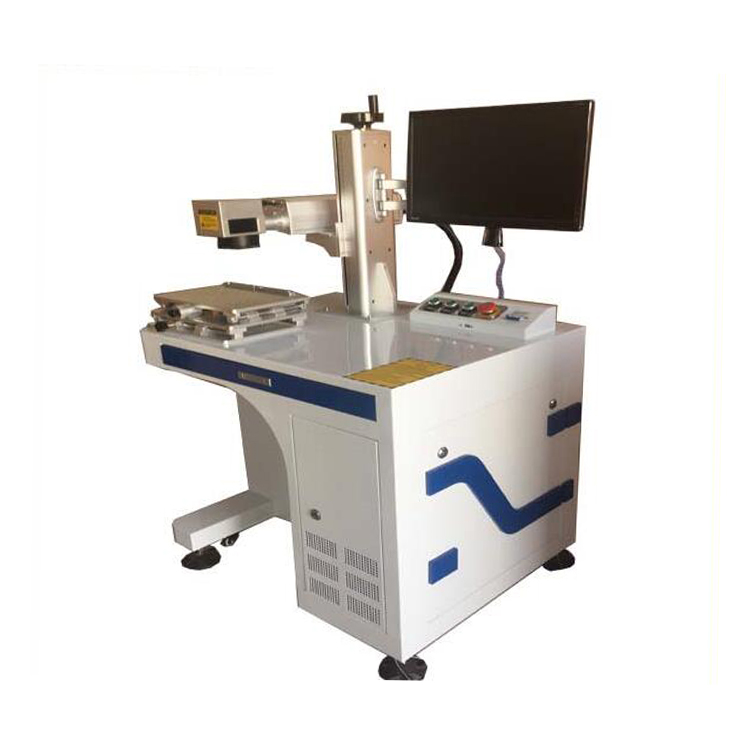

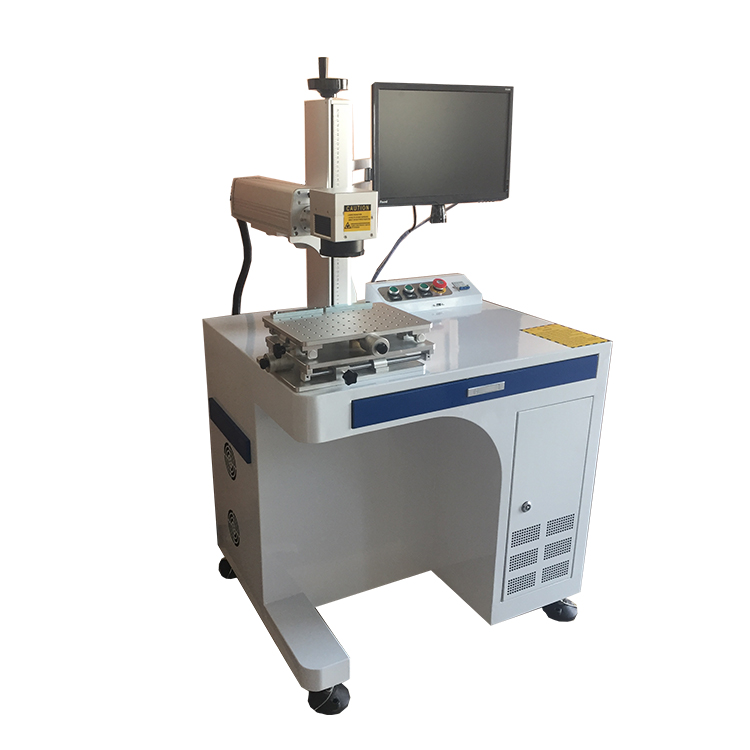

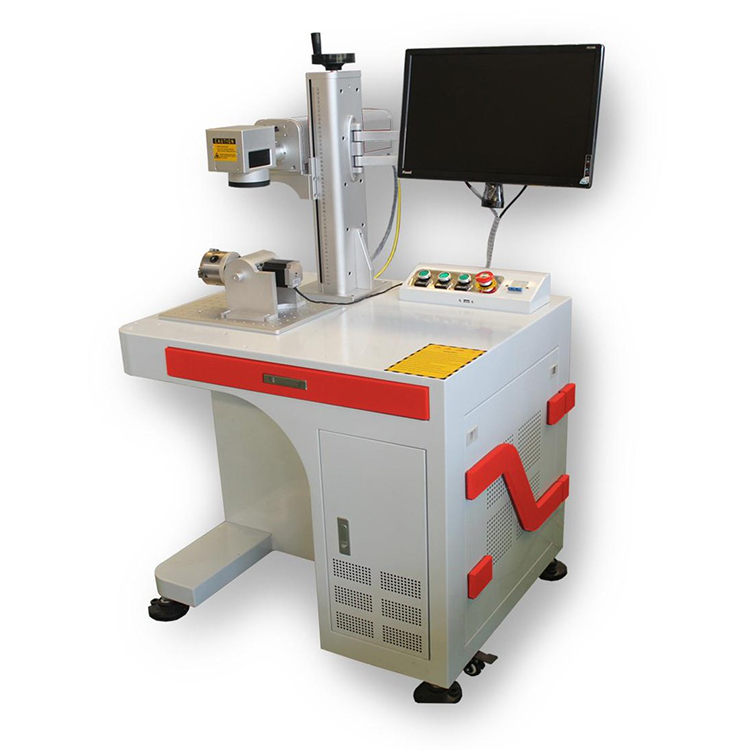

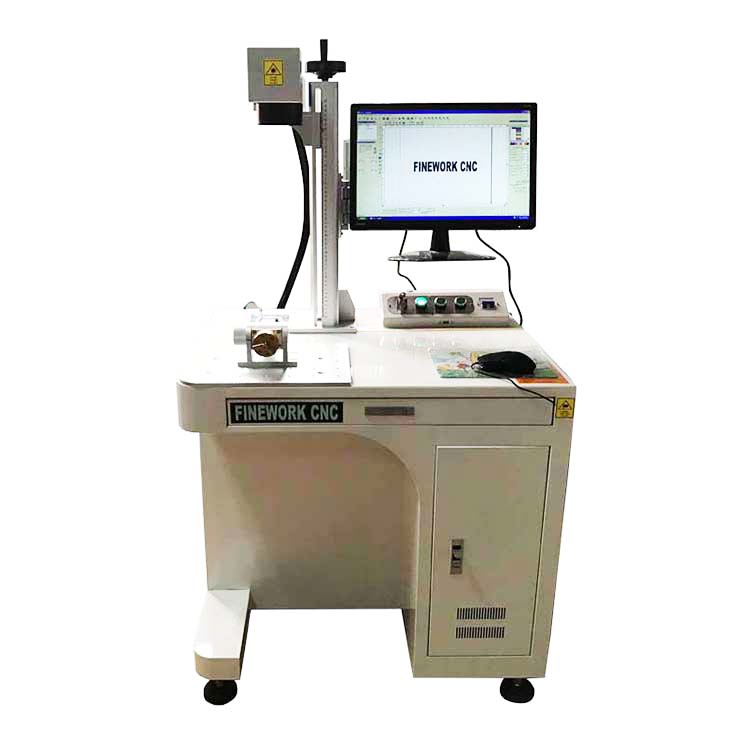

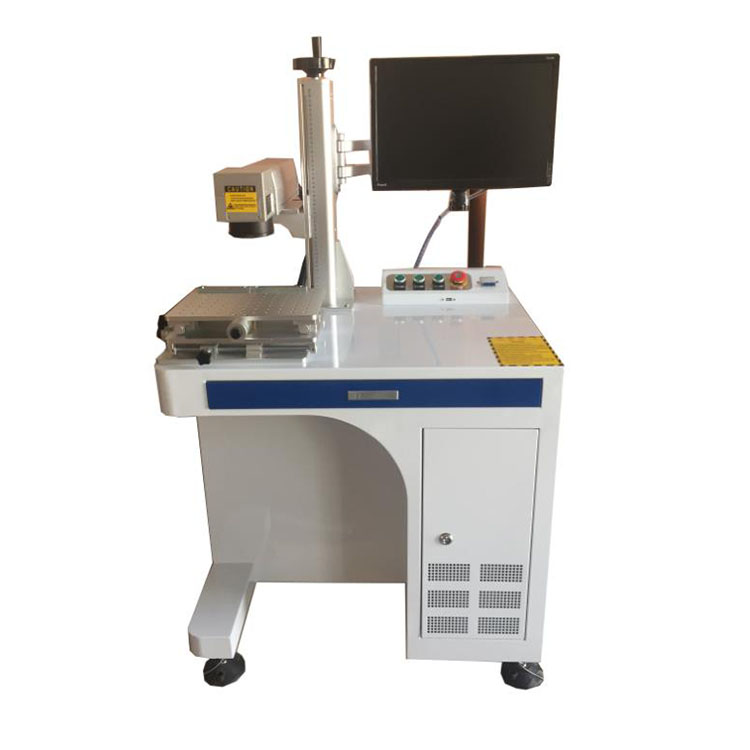

Fiber laser marking machine for aluminum

Product Tags : Fiber laser marking machine

Product Attributes :

High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction.

High pulse repeating rate and stable power bring high speed laser marking.

High speed 2-3 times over than traditional diode pumped marking machine.

Product Description

Specification

Laser power	10W/20W/30W/50W/option
Laser wave length	1064nm
Sandard marking area	200*200mm
Optional marking area	100100 , 300300 customerized aviliable
Minimum character	0.15mm
Marking speed	≤7000mm/s
Marking depth	0.01~1mm
Repeat frequency	20KHZ~80KHZ
Output laser beam	M²≤2
Focus spot diameter	< 0.01mm
Control interface	Standard USB port
Graphic format supported	BMP,JPG,AI,PLT,DST,DWG ETC.
Marking format	Text,symbols,graphics,images,barcodes,two-dimension bar. date marking,batch number,serial number etc.
Operating temperature	0-45°C
Cooling way	Built-fan for air cooling
Working voltage	220V-50Hz(single phase)or 110V-60Hx(single phase)
Computer	Including laptop cpmputer per set(software installed)
Laser marking oftware	Ezcad(English version)(the other optional software please contact us)
General power	<0.5KW
Working environment	Clean and dust-free or dust less
Working condition	5%~75%,free of condensed water
Optional device	Rotary marking attachment ;X/Y adjustable table, Mopa color marking
