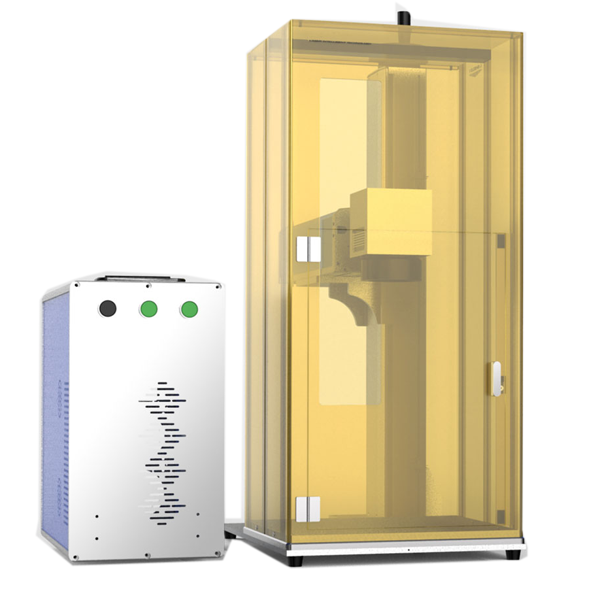

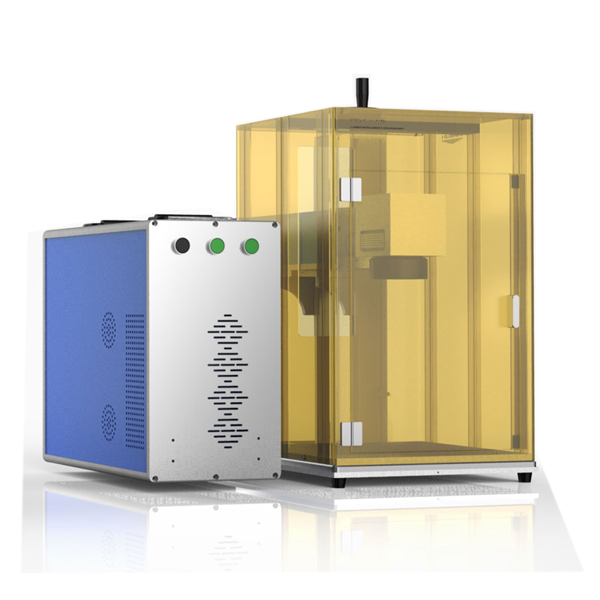

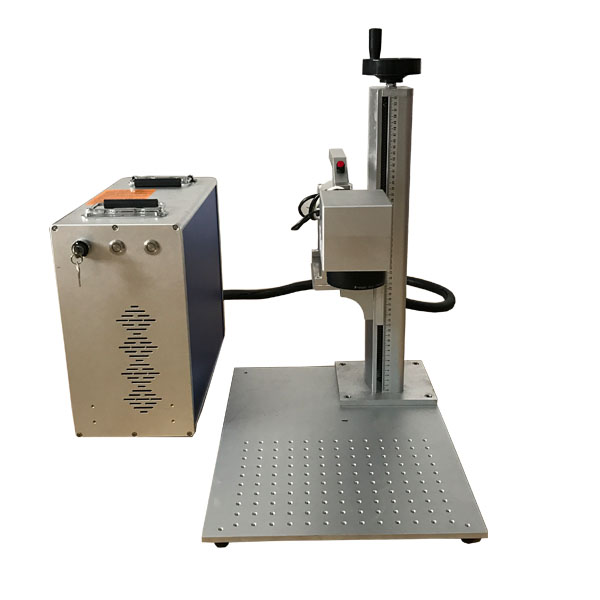

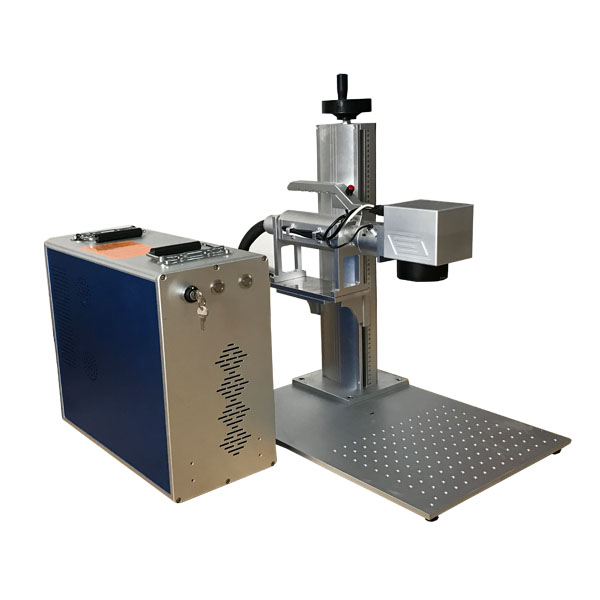

1.What is fiber laser marking machine :
Fiber laser marking machine uses laser beam to make permanent marks on the surface of various materials. The effect of marking is to expose the deep material through the evaporation of the surface material, or to "carve" traces through the physical change of the surface material caused by light energy, or to burn off part of the material through light energy to reveal the pattern to be etched , Text, bar code and other graphics.
2.composition
It is mainly composed of three parts: laser, vibrating lens and marking card. It uses fiber laser to produce laser marking machine.
3.About fiber source
The beam quality is good. Its output center is 1064nm. The life of the whole machine is about 100,000 hours. Compared with other types of laser marking The life of the device is longer, and the electro-optical conversion efficiency is more than 28%.
4.Advantage for the fiber laser
Compared with other types of laser marking machines, the conversion efficiency of 2%-10% has a great advantage. It has outstanding performance in energy saving and environmental protection.
|
Laser power
|
10W/20W/30W/50W/option
|
|
Laser wave length
|
1064nm
|
|
Sandard marking area
|
200*200mm
|
|
Optional marking area
|
100*100 , 300*300 customerized aviliable
|
|
Minimum character
|
0.15mm
|
|
Marking speed
|
≤7000mm/s
|
|
Marking depth
|
0.01~1mm
|
|
Repeat frequency
|
20KHZ~80KHZ
|
|
Output laser beam
|
M²≤2
|
|
Focus spot diameter
|
< 0.01mm
|
|
Control interface
|
Standard USB port
|
|
Graphic format supported
|
BMP,JPG,AI,PLT,DST,DWG ETC.
|
|
Marking format
|
Text,symbols,graphics,images,barcodes,two-dimension bar.
date marking,batch number,serial number etc. |
|
Operating temperature
|
0-45°C
|
|
Cooling way
|
Built-fan for air cooling
|
|
Working voltage
|
220V-50Hz(single phase)or 110V-60Hx(single phase)
|
|
Computer
|
Including laptop cpmputer per set(software installed)
|
|
Laser marking oftware
|
Ezcad(English version)(the other optional software please contact us)
|
|
General power
|
<0.5KW
|
|
Working environment
|
Clean and dust-free or dust less
|
|
Working condition
|
5%~75%,free of condensed water
|
|
Optional device
|
Rotary marking attachment ;X/Y adjustable table, Mopa color marking
|
| Auto focus laser head with mirror | Rotary for fiber laser marking machine |
 |
 |
| Fiber laser marking machine inside | Fiber laser marking machine source |
 |
 |
 |
 |
 |
Free spare together with machine
1.We support customized the head height according to client material height
2.We support customized the full enclosed shell size
3.We support machine logo OEM.
